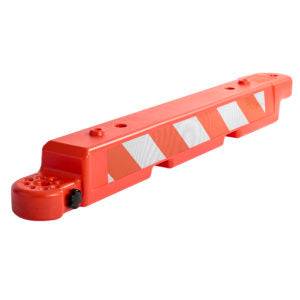

AIRPORT BARRICADE

BC Traffic Specialist

$0.00
SKU: AR10X96ORANGE

FEATURES & BENEFITS

• Frequently specified as it exceeds FAA and MIL STD requirements

• When ballasted, will remain in place – unaffected by prop wash, jet blast, or

surface winds in excess of 70 MPH

• Integrated connection design and large internal capacity eliminate the

need for external weights, such as sandbags

• Includes factory-installed high-intensity orange and white reflective

sheeting at no additional cost

• One-year manufacturing defect warranty

• Meets FAA AC150/5370-2G “Operational Safety on Airports During

Construction” and DoD Unified Facilities Criteria (UFC) 3-260-01 “Airfield

and Heliport Planning and Design”

• “Buy America Act” Compliant

COLORS

Safety orange and white. Custom colors available with minimum purchase.

COMPOSITION

Blow molded UV-resistant High Density Polyethylene (HDPE).

SIZE

Height: 10 in / 25.4 cm

Length: 96 in / 2.44 m

Width: 10 in / 25.4 cm

WEIGHT

Empty: 19 lbs / 12.7 kg

Full: Apprx 270 lbs / 122.5 kg*

*Weight calculation based on 30

standard US gallons of water

PALLET LOADING

Dimensions: 96” x 50” x 95”

Capacity: 45 units

NSN

5660-01-464-7545
