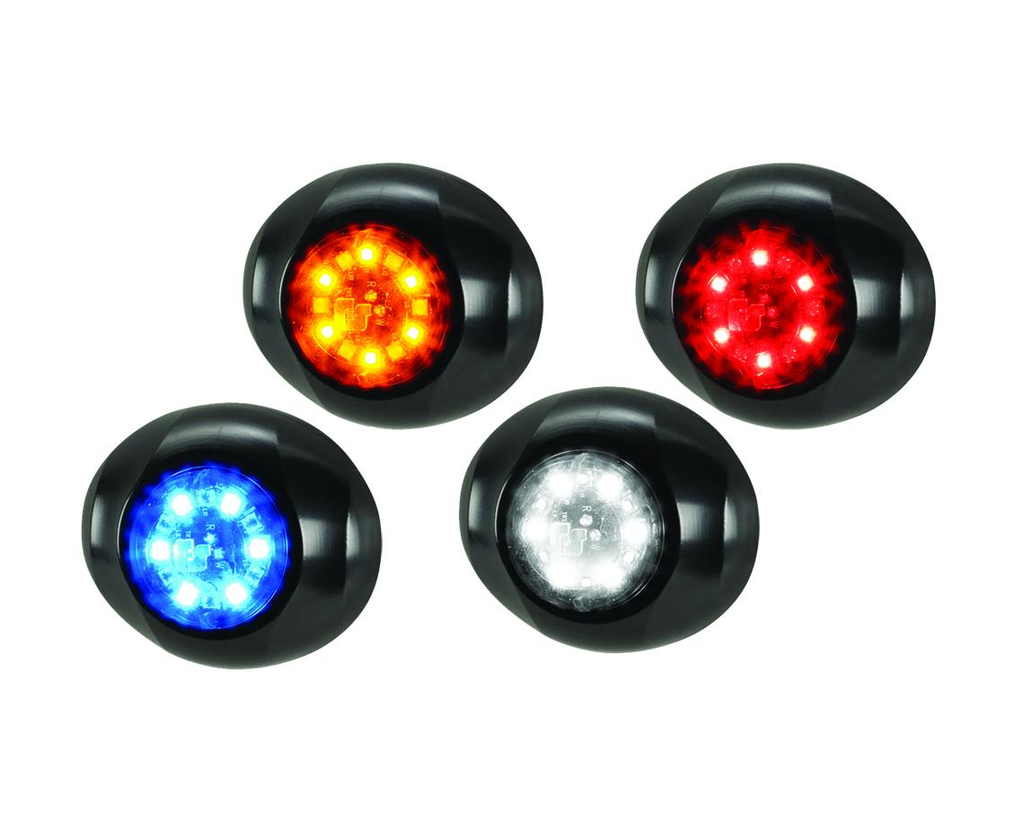

CORNER STROBE

BC Traffic Specialist

$76.67
SKU: 416910-W

416910-W Single Color Corner LED with in-line flasher, White

416910 models are single color and have 12 LEDs

416900 models are dual color and have 6 LEDs of each color (12 LEDs total)

Internal and external mounting applications

Each model includes light head, in-line flasher cable, black mounting bezel and gasket, gasket for headlight/taillight mounting, and mounting screws (shown below)

    19 flash patterns including “Random” and “STEADY”

    Two programming modes: MEMORY 1 and MEMORY 2

Wiring:

RED = +VDC for MEMORY 1

White = +VDC for MEMORY 2

Black = +Chassis Ground

Yellow = Synchronization wire for connecting

    multiple light heads

Optional bezels in White and Chrome, sold separately

Five-year LED warranty

S p e c i f i c a t i o n s

Voltage 12/24 VDC

Current Draw 0.6 A maximum at 12 VDC

0.4 A maximum at 24 VDC

Operating Temperature -30° C to +80° C

BC 416910-W
