BEACON CONTROLLER VPX SIGNALMS
BC Traffic Specialist
Call or Email Us for Rental Information
AVAILABLE FOR RENT
- Combined 12 and 24 VDC operation from one controller
- Operates two SignalMaster directional lights 331105-SB
- Fourteen 331105-SB seven 330104-SB SignalMaster warning patterns
- AUX IN and AUX OUT functions with eight warning patterns and steady-on mode allows customization of complete warning package 331105-SB
- Turn signal override feature 331105-SB
- Tactile membrane switch panel
- Reliable surface mount circuitry

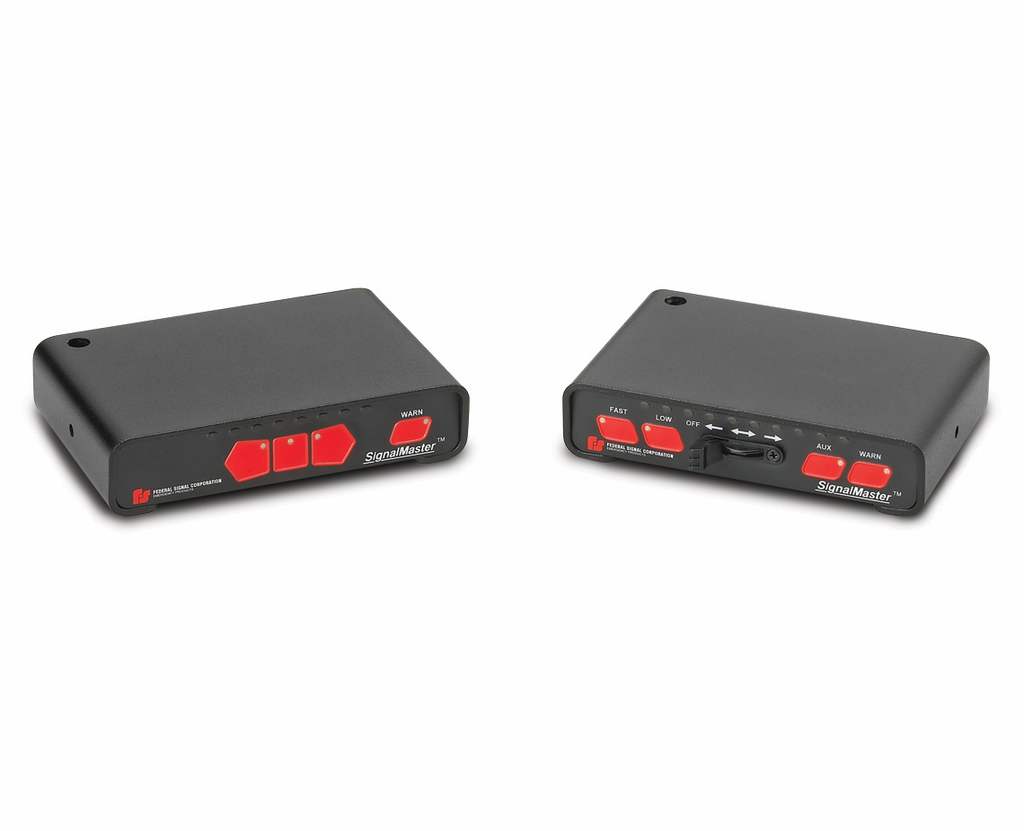

SignalMaster Directional Light Controllers
Federal Signal’s SignalMaster™ directional light controllers offer intelligent, reliable design with expanded features and functions. The innovative design makes them unlike any other in the market.
SignalMaster controllers perform the same functions as our previous models, but provide users with a great deal more. They operate 12 and 24 VDC systems and can be configured to operate two 4-, 6- or 8-lamp directional lights. Users can easily select the functions with the tactile membrane panel. For durability, both models are enclosed in a rugged 1/8" thick aluminum housing and include a mounting bracket.
Model 331105-SB – Multiple Flash Patterns
Model 331105-SB, is our full-featured SignalMaster directional light controller. It is equipped with fourteen user-selectable warning patterns. The 33105-SB also has a “Fast” and “Low Power” mode that can be selected for additional warning patterns. The directional control on the 331105-SB is selected by a lever switch. When a pattern is activated, the LED light indicator illuminates for quick recognition.
Auxiliary Light Functions
A unique feature of the 331105-SB is its increased auxiliary light output functionality. The equivalent of a two-channel flasher is incorporated into the controller when the AUX button is activated. The two flasher channels (5-Amps each) offer the user the choice of eight selectable patterns plus a steady-on mode. In addition to the flasher channels, the auxiliary feature is capable of switching a user-supplied relay to turn on almost any electronic device from the AUX button.
The auxiliary input feature allows users to activate the selected warning pattern from a remotely installed switch. The 331105-SB controller also features a turn signal override. When connected at the time of installation, use of the vehicle’s turn signal will disable the directional lightbar, allowing the end pods to mimic the vehicle’s turn signal.
|Input Voltage||12 VDC to 24 VDC|
|Polarity||Negative ground only|
|Operating Temperature Range||-30˚C to +65˚C|
|+BAT Fuse||25 A (installer supplied)|
|+Ignition Fuse||2 A|
|Relay Fuse||1 A (installer supplied)|
|Auxiliary||331105-SB (4) 27W lamps (2 per output) (2) 55W lamps (1 per output)|
|Flash Rate||Normal - 30 patterns per minute|
|Fast - 331105-SB 45 patterns per minute|
|Dim. (H x W x D):||1.5 in (3.8 cm) x 6.1 in (15.6 cm) x 5.0 in (12.7 cm)|
|Ship Weight||2.5 lbs (1.13 kg)|
