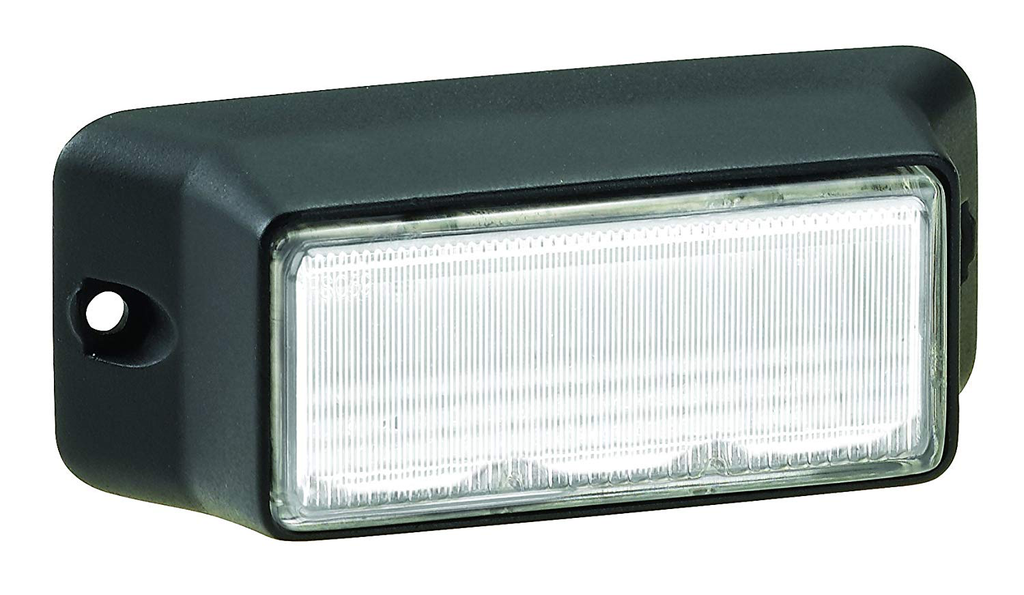

LIGHTHEAD IMPAXX 3-LED WHITE
AVAILABLE FOR RENT
PX300-5 Single color, White, 3-LED light head, clear off-axis lens
Highly Effective Warning
IMPAXX light heads combine Solaris reflector technology with the most advanced LEDs for the brightest, most efficient auxiliary, compact light available.
IMPAXX can operate independently, synchronize with other IMPAXX, or synchronize with Federal Signal Viper EXT or Viper S2 products. IMPAXX light heads are programmed with 24 built-in flash patterns. These patterns can be synchronized to flash in the same pattern, flash in a sliding progression or flash in opposite sequence of each other.
IMPAXX light heads are available with either center focused or off axis lensing. The center focused lens directs the LED light forward making them ideal for front or rear vehicle applications. The advanced off-axis lens provides warning light forward and to both sides, allowing for intersection or side vehicle mounting.
SpectraL and Takedown Capability
IPX6 models feature our SpectraLux multi-color LED capability and are available in single-color models (6-LEDs), two-color models (12-LEDs), or three-color models (18-LEDs). Two-color models or three-color models utilizing White LEDs can be wired to operate the White LEDs in steady-on mode to provide additional Takedown capability.
IMPAXX lights come complete with a weatherproof housing, black bezel, and rubber grommet for quick and easy installation. A wide variety of brackets are available for various vehicle types and applications.
Approvals IMPAXX3, SAE J959 Class2
Voltage 12.8 VDC
Operating Temperature Range -30° C to +65° C
Current Draw IPX3 - 0.7 A | IPX6 1 A
Dim. (L x W x H) IPX3 (with bezel)- 3.7 in (9.4 cm) x 1.3 in (3.3 cm) x 1.7 in (4.2 cm)
IPX3 (without bezel) 2.9in ( 7.4 cm) x 1.2 in (3.0 cm) x 1.3 in (3.3 cm)
IPX6 (with bezel) - 5.5 in (14.0 cm) x 1.5 in (3.8 cm) x 2.0 in (4.8 cm)
IPX6 (without bezel) - 4.1 in (10.4 cm) x 1.4 in (3.6 cm) x 1.4 in (3.6 cm)
Ship Weight 1.0 lbs (0.45 kg)
