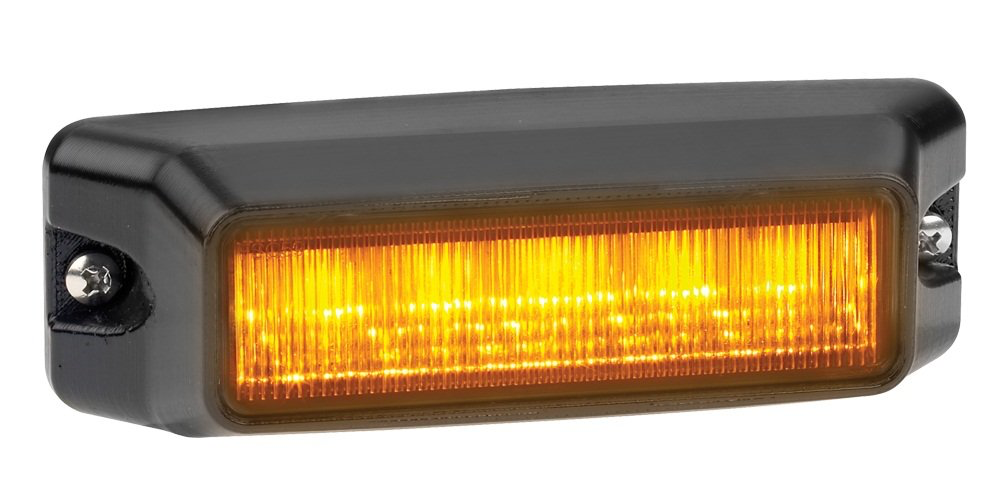

LIGHTHEAD IMPAXX 6-LED AMBER
AVAILABLE FOR RENT
Highly Effective Warning
IMPAXX light heads combine SolarisÂ® reflector technology with the most advanced LEDs for the brightest, most
efficient auxiliary, compact light available.
IMPAXX can operate independently or synchronize with other IMPAXX light heads and are programmed with 24
built-in flash patterns. These patterns can be synchronized to flash in the same pattern, flash in a sliding progression
or flash in opposite sequence of each other.
IMPAXX light heads come with off axis lensing. The advanced off-axis lens provides warning light forward and to
both sides, allowing for intersection or side vehicle mounting.
SpectraLux and Takedown Capability
IPX6 models feature our SpectraLux multicolor LED capability and are available in single color models (6-LEDs),
two-color models (12-LEDs), or three color models (18-LEDs). Two color models or three color models utilizing
White LEDs can be wired to operate the White LEDs in steady-on mode to provide additional takedown capability.
IMPAXX lights come complete with a weatherproof housing, black bezel, and rubber grommet for quick and easy
installation. A wide variety of brackets are available for various vehicle types and applications.
IPX600B-A 6-LED light head, Amber
S p e c i f i c a t i o n s
Voltage 12.8 VDC
Current Draw 1 A
Operating temp -30° C to +80° C
P h y s i c a l S p e c i f i c a t i o n s
With Bezel Without Bezel
Length 5.5 in (14.0 cm) 4.1 in (10.4 cm)
Width 1.5 in (3.8 cm) 1.4 in (3.6 cm)
Height 2.0 in (4.8 cm) 1.4 in (3.6 cm)
